MAG524 is a powerful and cost-effective solution for quickly launching IPTV/OTT projects. Thanks to the ARM Cortex-A53 processor on the Hi3798MV200 chipset and the built-in HEVC codec, this set-top box easily reproduces 4K content at 60 fps and does not create excessive network loading.
MAG524 delivers pure surround sound with the help of built-in Dolby Digital six-channel audio support.
4K and HEVC support, 512 MB RAM, 512 MB NAND, USB × 2 pcs. (3.0, 2.0), Built-in Wi-Fi (only for MAG420w1), Linux OS, HDMI and RCA outputs
MAG524 is a basic set-top box model. The device can be connected to the Internet via the Ethernet interface.
MAG424w3 has a built-in 802.11 b/g/n standard Wi-Fi module. This set-top box can be connected to the Internet wirelessly; no cables or additional accessories are necessary.

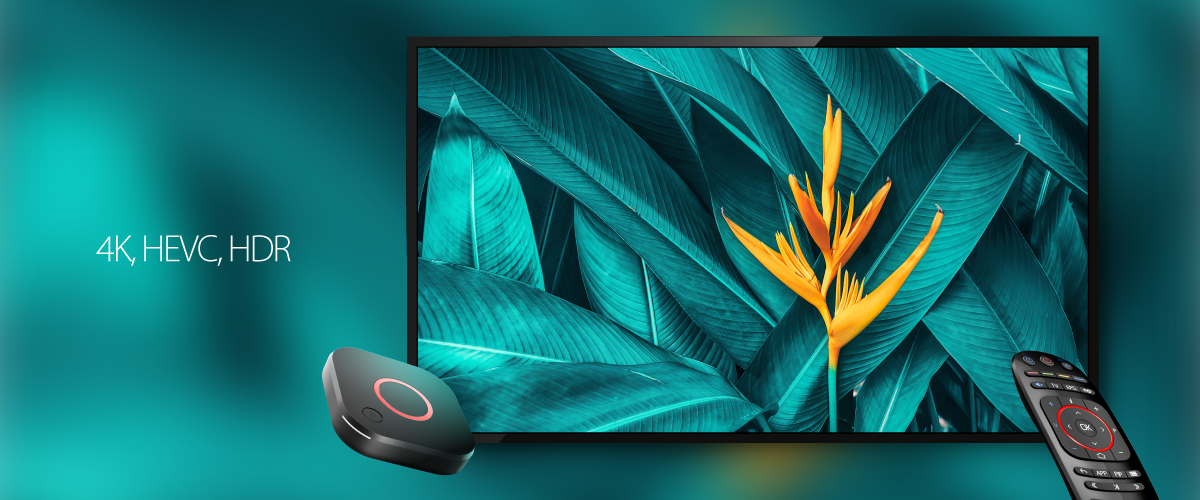

4K and HEVC support
The MAG420 easily handles 4K video. Thanks to the embedded HEVC codec (h.265), users can access UHD content, even with low Internet connection speeds.
Easy Wi-Fi connection
Thanks to the built-in 802.11 b/g/n standard Wi-Fi module, you can position the set-top box in any part of the house without having to worry about wires.* *For MAG420w1 only.
Dolby Digital support
The built-in Dolby Digital technology supports six-channel surround sound and provides hi-fi sound, even when playing compressed audio.
HDMI and RCA outputs
You can connect TVs of different generations to MAG420: both displays with HDMI inputs and devices with RCA inputs are compatible with this device.
Dimensions
Width/depth/height, (mm)
132х87х26
Weight, g
128
Hardware
Chipset
Hi3798MV200
Processor
ARM Cortex-A53 Quad Core CPU 1200 MHz
Performance
15 000 DMIPS
RAM
512 MB
Flash memory
512 MB NAND
Software
Operating system
Linux 4.4.35
Middleware supported
Ministra TV platform version 5.4.1 or higher
Interfaces
RCA 3.5 mm, HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1
Sources of media content
PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB devices
Audio & video
Audio сodecs
MPEG L1/L2/L3, Dolby Digital, AAC-LC, HE AAC V1/V2, APE, FLAC
Audio formats
AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video modes
PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs
MPEG1/2 MP@HL, MPEG4 part 2 (ASP),H.265 Main/Main 10@L5.1 High 2160p@60 fps (optional), H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
